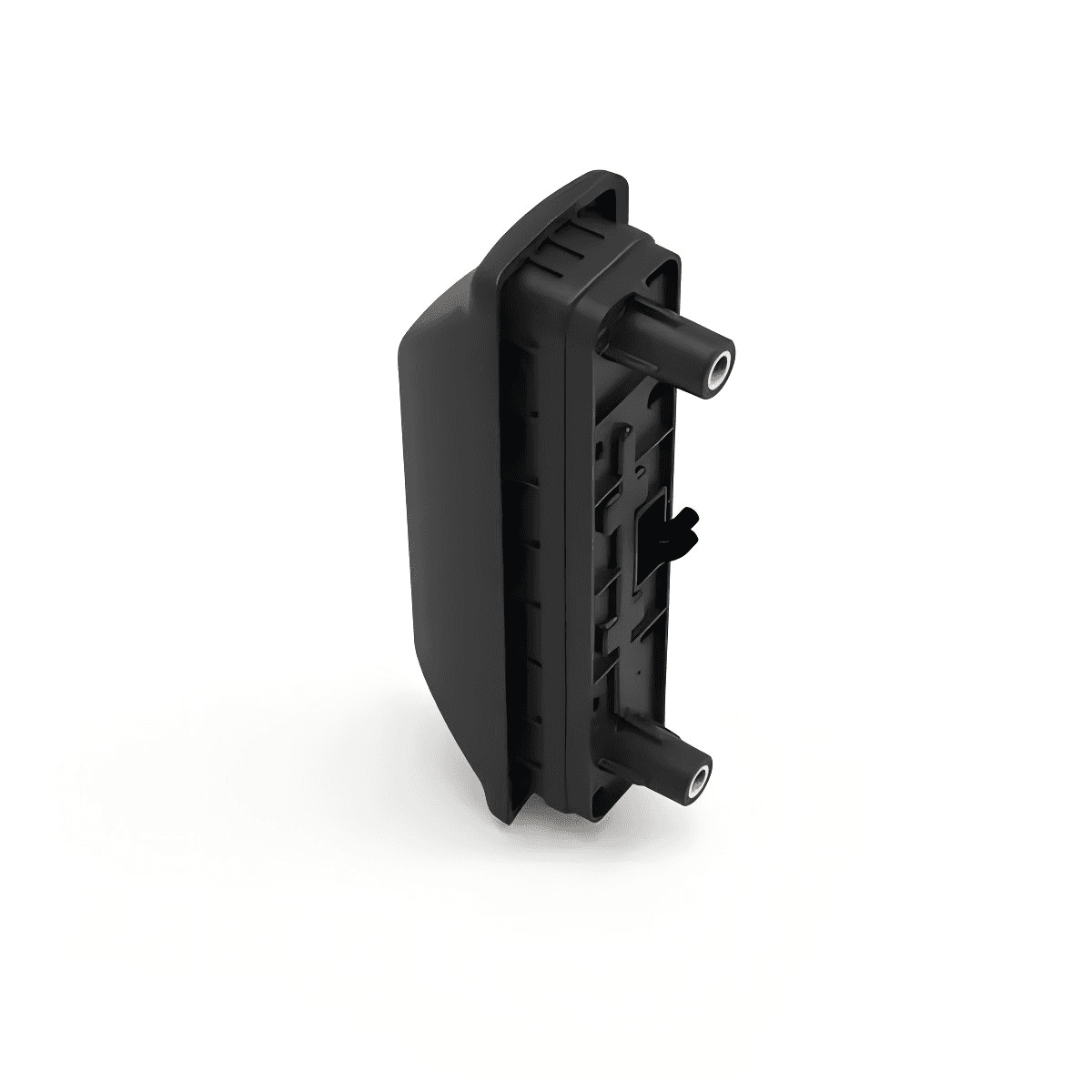

TBIT WD-260 shared scooter IoT controller front angle render

1 / 4

🔒 Smart Lock

Fleet Recommended

TBIT

WD-260 Helmet-Lock IoT Controller

Name: WD-260 Helmet-Lock IoT Controller
Brand: TBIT
SKU: WD-260

4G/Bluetooth shared-scooter IoT terminal with helmet-lock control, battery-lock control, GPS + BeiDou positioning, and IP67 protection.

Capability Categories

GPS Only

Helmet Lock

Bluetooth

4G / Cellular

Locking / Access Summary

Network

4G LTE

Positioning

GPS + BeiDou

Locks

Helmet + battery

Ingress

IP67

Contact for Pricing Manufacturer Site

Technical Specifications

Controller Role

Product Class

Shared e-scooter central-control 4G IoT terminal

Helmet-Lock Role

Controls a compatible helmet lock; not the physical latch

App / Backend

4G network plus Bluetooth interaction with mobile apps and backend systems

Deployment Regions

TBIT lists China, Europe, and Southeast Asia; confirm bands/certifications by market

Control Functions

Lock Control

Helmet lock and battery lock

Vehicle Control

ACC detection, headlight control, wheel detection, voice horn / broadcast

Telemetry / Security

Real-time positioning, vibration detection, anti-theft / fortification functions, BMS

Updates

OTA upgrade

Optional

Instrument display

Published Specs

Dimensions

159.31 x 43.98 x 64 mm on web page; PDF lists 154.54 x 42.99 x 66 mm for WD-260C

Input Voltage

12V-72V

Internal Battery

3.7V / 600mAh non-rechargeable

Power Consumption

<15mA normal work at 48V; <2mA standby sleep at 48V

Operating Environment

-20 to +70 deg C; 20% to 95% RH

Shell Material

PC, V0 fire protection

Connectivity & RF

Bluetooth

BLE 4.2, -90dBm receiving sensitivity

Cellular

LTE-FDD / LTE-TDD, 23dBm max emission power

LTE Bands

FDD B1/B3/B5/B8; TDD B34/B39/B40/B41

Positioning

GPS + BeiDou, 10m manufacturer accuracy claim

Physical Specifications

IP Rating

IP67

Connectivity

Bluetooth

Yes

Companion App

TBIT backend and mobile app interactions

GPS

Yes

Cellular

4G LTE

Features & Capabilities

Key Features

4G shared-scooter central-control IoT terminal

Helmet lock and battery lock control

GPS + BeiDou positioning with 10m manufacturer accuracy claim

Bluetooth 4.2 app interaction

Backend communication over LTE-FDD / LTE-TDD

ACC, wheel, headlight, and voice horn / broadcast control

Real-time positioning, vibration detection, and anti-theft functions

BMS support listed in the official manual

OTA upgrade support and optional instrument display

12V-72V vehicle input range

IP67 waterproof and dustproof PC V0 enclosure

Pros

Combines vehicle telemetry, positioning, and lock control in one scooter-side terminal
Officially targets shared electric scooter operations across multiple regions
Helmet-lock support makes it useful when the latch needs controller-level integration
Wide 12V-72V input range fits many scooter electrical platforms
Published RF, power, environmental, and enclosure specs

Cons

-Controller only; requires a compatible physical helmet lock and vehicle wiring
-Public materials do not publish API, pinout, firmware, connector, or certification details
-Official sources conflict on WD-260 vs WD-260C naming and dimensions
-Listed LTE bands should be validated for the deployment country and carrier
-Internal 3.7V / 600mAh battery is non-rechargeable and should not be treated as a long-duration backup

Ideal For

Shared e-scooter fleets needing one IoT controller for tracking, vehicle control, and lock control

Helmet-supplied scooter programs with a compatible electronic helmet latch

Operators already evaluating the TBIT app, backend, or shared mobility platform

Urban, campus, and tourist-area shared scooter deployments

Compatible Fleet Platforms

TBIT shared mobility platform

Operator backend via TBIT device integration

Specs from TBIT WD-260 official product page and WD-260C PDF manual. Cataloged as helmet-lock controller hardware, not the latch itself; confirm revision, bands, connector pinout, and physical latch compatibility before deployment.

About This Product

TBIT WD-260 / WD-260C is a central-control 4G IoT terminal for shared electric scooters, not the helmet latch itself. It belongs on the helmet-lock page because TBIT explicitly lists helmet locking and battery locking as supported controller functions.

The public materials describe 4G communication with backend systems and Bluetooth interaction with mobile apps, plus GPS + BeiDou positioning, vehicle control, voice playback/broadcast, wheel detection, vibration and anti-theft functions, BMS, headlight control, OTA upgrade, and optional instrument display.

Before procurement, confirm hardware revision, connector pinout, firmware/API access, local LTE bands/certifications, and the compatible physical helmet-lock accessory. TBIT sources conflict: the web product table lists WD-260 at 159.31 x 43.98 x 64 mm, while the downloadable manual names WD-260C and lists 154.54 x 42.99 x 66 mm.
