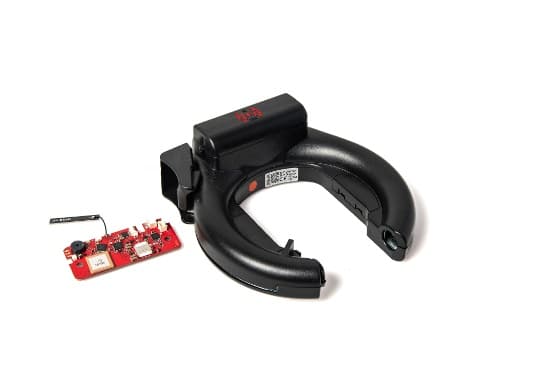

RE-LOCK Premium from the official Re-Lock site

1 / 7

🔒 Smart Lock

Fleet Recommended

Re-Lock

RE-LOCK Premium

Name: RE-LOCK Premium
Brand: Re-Lock
SKU: RE-LOCK

GPS/LTE smart lock with Bluetooth, server-side unlock hardware support, vehicle-battery power, optional CAN bus, and crash or motion detection.

Capability Categories

GPS Capable

Bluetooth

4G / Cellular

Locking / Access Summary

Unlock

Bluetooth + pending server-side API

Tracking

GPS

Power

Vehicle battery

Integration

Optional CAN bus

Contact for Pricing Manufacturer Site

Technical Specifications

Access & Power

Open / Close

Bluetooth today; server-side unlock hardware path pending API control endpoint

Remote API Status

Server-side unlock hardware support confirmed, but API endpoint to open a lock is pending

Power Supply

Via vehicle battery

Tire Fit

Fits around almost any tire up to 70 mm

Telematics & Safety

GPS

Included

Vehicle Interfaces

Optional CAN bus digital readout / motor-management connection

Detection

Crash and motion detection

IoT PCB Technical Sheet

PCB Size

73.0 x 32.0 mm

Cellular

LTE Cat 1 bis / EGPRS with nano SIM

Main Modem

Quectel EG915U LTE Cat 1 bis / GSM

Optional Modem

Quectel BG95-M3 LTE Cat M1 / NB-2 / GSM

External Power

8-55VDC

Backup Battery

Internal rechargeable LiPo backup battery and charger

Position Storage

Up to 4,000 log entries

Sensors

3D accelerometer up to 16g

Inputs / Outputs

Two inputs, buzzer, stepper motor driver, and two LEDs

Operating Temperature

-10 C to +70 C depending options; LiPo charging 0 C to +45 C

Remote Updates

OTA firmware and configuration file updates

Platform Integration

Technical sheet states support for third-party network integration to existing server apps

Cellular & Bluetooth Detail

LTE FDD Bands

B1/B3/B5/B7/B8/B20/B28

GSM / GPRS Bands

850 / 900 / 1800 / 1900 MHz

Bluetooth Radio

Nordic nRF52810 / nRF52832

Bluetooth Mode

BLE 4.0 and proprietary 2.4GHz

Bluetooth Range

Short-range radio up to 30 m with onboard antenna

Bluetooth TX / Sensitivity

Up to +4dBm TX power; -96dBm sensitivity

GNSS Detail

GNSS Chipset

Quectel LC76G single-band GNSS

Constellations

GPS, GLONASS, and Galileo

Antenna

GNSS onboard antenna

Channels

47 search channels

Frequency

GPS L1 1575.42 MHz; GLONASS L1 1598.0625-1605.375 MHz; Galileo E1 1575.42 MHz

Sensitivity

Acquisition -147dBm; reacquisition -159dBm; tracking -166dBm

Accuracy

<2.0 m CEP horizontal position accuracy

Power & Connectors

Battery Connector

Molex 1.50 mm Pico-SPOX vertical PCB header, 3 circuits, PCB 87437-0343

Battery Mating Connector

Molex 87439-0300

Battery Pinout

Temperature sensor, ground, and 3.4-4.5V battery positive

External Power Connector

Molex 1.50 mm Pico-SPOX vertical PCB header, 4 circuits, PCB 87438-0443

External Power Mating Connector

Molex 87439-0400

External Power Pinout

Pin 1 8-55VDC; pins 2-3 do not use; pin 4 ground

Charging Current

LiPo charging current max 200mA at 0 C to +45 C

Security & Integration

Approvals

ART approved, all-weather certified, Thales certified

Platform Support

Re-Lock API / IoT platform sandbox by account; compatible fleet management platforms

Current API

Claim/transfer locks and fetch BLE session keys; IoT data API planned/available per account

Emergency Function

Manual emergency lock function

Certifications & Origin

ART

Dutch insurance-recognised anti-theft certification (supports EU fleet insurance acceptance)

Cradle to Cradle

Sustainability certified (relevant for municipal RFPs with sustainability mandates)

Thales Secure Element

Hardware-level cryptographic security

Patent

Patented digital lock mechanism

Country of Origin

Netherlands (Dutch-engineered and Dutch-assembled)

Connectivity

Bluetooth

Yes

Companion App

Re-Lock system / Key Management Service

GPS

Yes

Cellular

LTE Cat 1 bis / EGPRS with GSM fallback

Features & Capabilities

Key Features

Bluetooth workflow plus server-side remote-unlock hardware support

GPS support

Powered via vehicle battery (no separate charging cycle)

Optional CAN bus integration (drivetrain-level motor immobilisation)

Crash and motion detection

API / IoT platform sandbox available by account

Current API supports lock claiming/transfers and BLE session-key retrieval

Fits tires up to 70 mm

LTE Cat 1 bis / EGPRS IoT PCB with nano SIM

Quectel EG915U modem; optional BG95-M3 LTE Cat M1 / NB-2 / GSM modem

Quectel LC76G GNSS with GPS, GLONASS, and Galileo

Up to 4,000 stored position log entries

8-55VDC external power with internal LiPo backup battery and charger

Nordic BLE radio with up to 30 m short-range operation

3D accelerometer up to 16g, buzzer, two inputs, two LEDs, and stepper motor driver

Remote OTA firmware and configuration updates

ART approved (Dutch insurance-recognised anti-theft mark)

Cradle to Cradle certified

Thales secure element (hardware-level cryptographic security)

Patented digital lock mechanism

Dutch-engineered and Dutch-assembled

Pros

Stronger telematics and backend-control story than the BLE version
Vehicle-battery power reduces manual battery swaps
GPS plus motion detection are useful for fleet operations
Optional CAN bus motor immobilisation adds drivetrain-level theft deterrent on top of physical lock
Re-Lock says IoT data will be made available via API
ART certification supports EU fleet insurance acceptance
Thales secure element provides hardware-level cryptographic security

Cons

-Remote-open API endpoint is not yet available as of Re-Lock email on 2026-05-11
-Current customer flow is BLE: backend fetches session keys, app generates OTPs, and phone talks to lock
-No confirmed server-side remote-lock command; users lock manually by holding the lever
-Public site does not publish detailed IP or electrical integration specs
-Requires vehicle-power integration to realize the full feature set

Ideal For

Connected bike-sharing fleets

Integrated rental e-bikes

OEM programs needing backend unlock

Compatible Fleet Platforms

Re-Lock API / IoT platform

Re-Lock Key Management Service

Compatible fleet management platforms

Specs taken from the official Re-Lock solutions page on 2026-04-23, Chiel Bekker email replies on 2026-05-11 and 2026-05-13, and RE-LOCK Technical Sheets 2026 PCB PDF / product demo video provided in May 2026. Re-Lock confirmed Premium and Premium Plus support server-side remote unlock at the hardware/platform level, but current customers use the BLE session-key flow: Re-Lock Key Management Service provides session keys and the app generates OTPs over BLE. The API endpoint to control/open a lock is not yet available and is expected soon; IoT data will be made available via API. Optional CAN bus integration with e-bike powertrain controllers enables drivetrain-level motor immobilisation. Two ownership models are offered: capex purchase or monthly lease. Re-Lock (Chiel Bekker) confirmed commercial terms on 2026-05-13: standard MOQ is 1,000 units (a 100-unit pilot is possible if stock allows); a special 2-sample pilot kit covering one BLE plus one Premium unit is available for €100 with operator-supplied UPS/FedEx account. Lead time is 10 weeks per order (confirmed at quote time; quotes valid 30 days). Premium pricing includes a GSM SIM with 30 MB of data per month for 3 years; bring-your-own SIM has no specific network requirements. US import/certification specifics are still pending forwarder reply. Re-Lock will be unreachable 2026-05-14 through 2026-05-18 for the Dutch national holiday.

About This Product

Re-Lock positions the Premium tier as the connected step-up from the BLE version. The official solutions page adds GPS, server-side unlocking, optional CAN bus integration, and crash or motion detection while drawing power from the vehicle battery.

Re-Lock confirmed on 2026-05-11 that Premium and Premium Plus support server-side remote unlock at the hardware/platform level, but current customer deployments use the BLE session-key flow. The API endpoint to control/open a lock is not yet available and is expected to be added soon.

The 2026 technical sheets identify the Premium IoT electronics as a 73.0 x 32.0 mm board with LTE Cat 1 bis / EGPRS, nano SIM, onboard GNSS antenna, Nordic BLE, 8-55VDC external power, internal LiPo backup battery, motion sensing, buzzer, stepper motor driver, and up to 4,000 stored position logs.
