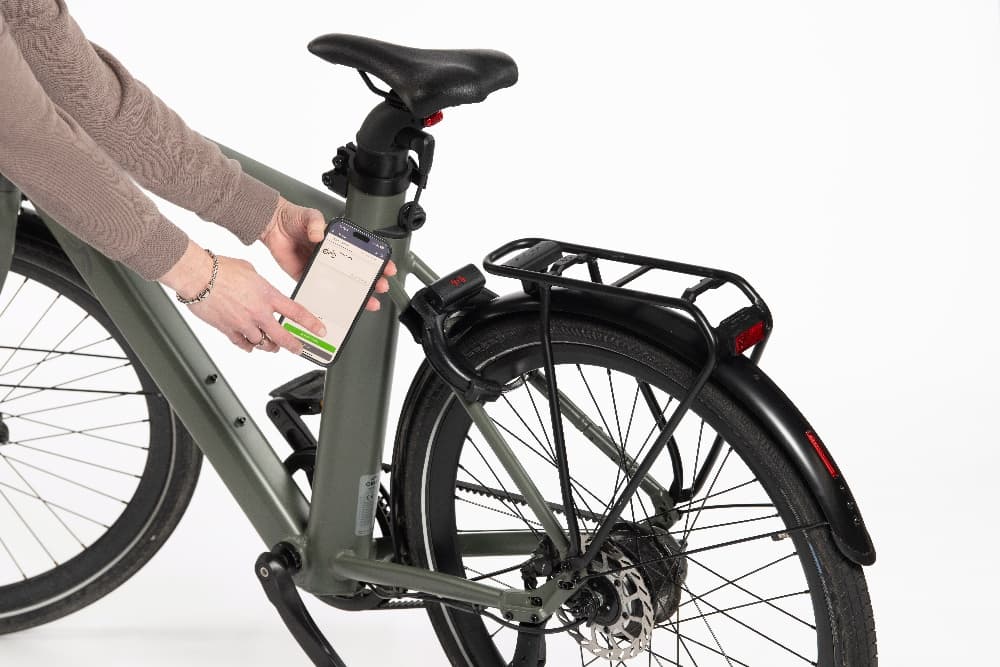

RE-LOCK Premium Plus from the official Re-Lock site
1 / 7
๐Ÿ”’ Smart Lock
Fleet Recommended

Re-Lock

RE-LOCK Premium Plus

Top-tier GPS/LTE smart lock with Bluetooth, NFC, server-side unlock hardware support, vehicle-battery power, optional CAN bus, and crash or motion detection.

Capability Categories

GPS Capable
Bluetooth
4G / Cellular

Locking / Access Summary

Unlock

Bluetooth + NFC + pending API

Tracking

GPS

Power

Vehicle battery

Integration

Optional CAN bus

Technical Specifications

Access & Power

Open / Close
Bluetooth and NFC today; server-side unlock hardware path pending API control endpoint
Remote API Status
Server-side unlock hardware support confirmed, but API endpoint to open a lock is pending
Power Supply
Via vehicle battery
Tire Fit
Fits around almost any tire up to 70 mm

Telematics & Safety

GPS
Included
Vehicle Interfaces
Optional CAN bus digital readout / motor-management connection
Detection
Crash and motion detection

IoT PCB Technical Sheet

PCB Size
73.0 x 32.0 mm
Cellular
LTE Cat 1 bis / EGPRS with nano SIM
Main Modem
Quectel EG915U LTE Cat 1 bis / GSM
Optional Modem
Quectel BG95-M3 LTE Cat M1 / NB-2 / GSM
External Power
8-55VDC
Backup Battery
Internal rechargeable LiPo backup battery and charger
Position Storage
Up to 4,000 log entries
Sensors
3D accelerometer up to 16g
Inputs / Outputs
Two inputs, buzzer, stepper motor driver, and two LEDs
Operating Temperature
-10 C to +70 C depending options; LiPo charging 0 C to +45 C
Remote Updates
OTA firmware and configuration file updates
Platform Integration
Technical sheet states support for third-party network integration to existing server apps

Cellular & Bluetooth Detail

LTE FDD Bands
B1/B3/B5/B7/B8/B20/B28
GSM / GPRS Bands
850 / 900 / 1800 / 1900 MHz
Bluetooth Radio
Nordic nRF52810 / nRF52832
Bluetooth Mode
BLE 4.0 and proprietary 2.4GHz
Bluetooth Range
Short-range radio up to 30 m with onboard antenna
Bluetooth TX / Sensitivity
Up to +4dBm TX power; -96dBm sensitivity

GNSS Detail

GNSS Chipset
Quectel LC76G single-band GNSS
Constellations
GPS, GLONASS, and Galileo
Antenna
GNSS onboard antenna
Channels
47 search channels
Frequency
GPS L1 1575.42 MHz; GLONASS L1 1598.0625-1605.375 MHz; Galileo E1 1575.42 MHz
Sensitivity
Acquisition -147dBm; reacquisition -159dBm; tracking -166dBm
Accuracy
<2.0 m CEP horizontal position accuracy

Power & Connectors

Battery Connector
Molex 1.50 mm Pico-SPOX vertical PCB header, 3 circuits, PCB 87437-0343
Battery Mating Connector
Molex 87439-0300
Battery Pinout
Temperature sensor, ground, and 3.4-4.5V battery positive
External Power Connector
Molex 1.50 mm Pico-SPOX vertical PCB header, 4 circuits, PCB 87438-0443
External Power Mating Connector
Molex 87439-0400
External Power Pinout
Pin 1 8-55VDC; pins 2-3 do not use; pin 4 ground
Charging Current
LiPo charging current max 200mA at 0 C to +45 C

Security & Integration

Approvals
ART approved, all-weather certified, Thales certified
Platform Support
Re-Lock API / IoT platform sandbox by account; compatible fleet management platforms
Current API
Claim/transfer locks and fetch BLE session keys; IoT data API planned/available per account
Emergency Function
Manual emergency lock function

Certifications & Origin

ART
Dutch insurance-recognised anti-theft certification (supports EU fleet insurance acceptance)
Cradle to Cradle
Sustainability certified (relevant for municipal RFPs with sustainability mandates)
Thales Secure Element
Hardware-level cryptographic security
Patent
Patented digital lock mechanism
Country of Origin
Netherlands (Dutch-engineered and Dutch-assembled)

Connectivity

Bluetooth
Yes
Companion App
Re-Lock system / Key Management Service
GPS
Yes
Cellular
LTE Cat 1 bis / EGPRS with GSM fallback

Features & Capabilities

Key Features

Bluetooth and NFC access plus server-side remote-unlock hardware support
NFC tap-to-unlock (corporate badge fleets, ISO-14443 transit cards)
GPS support
Powered via vehicle battery (no separate charging cycle)
Optional CAN bus integration (drivetrain-level motor immobilisation)
Crash and motion detection
API / IoT platform sandbox available by account
Current API supports lock claiming/transfers and BLE session-key retrieval
Fits tires up to 70 mm
LTE Cat 1 bis / EGPRS IoT PCB with nano SIM
Quectel EG915U modem; optional BG95-M3 LTE Cat M1 / NB-2 / GSM modem
Quectel LC76G GNSS with GPS, GLONASS, and Galileo
Up to 4,000 stored position log entries
8-55VDC external power with internal LiPo backup battery and charger
Nordic BLE radio with up to 30 m short-range operation
3D accelerometer up to 16g, buzzer, two inputs, two LEDs, and stepper motor driver
Remote OTA firmware and configuration updates
ART approved (Dutch insurance-recognised anti-theft mark)
Cradle to Cradle certified
Thales secure element (hardware-level cryptographic security)
Patented digital lock mechanism
Dutch-engineered and Dutch-assembled

Pros

  • Most complete public Re-Lock access stack with NFC added
  • GPS, backend control, and vehicle power are all fleet-friendly
  • Compatible-platform positioning is explicit on the official site
  • NFC tap-to-unlock is a drop-in fit for corporate badge fleets and ISO-14443 transit cards
  • Optional CAN bus motor immobilisation adds drivetrain-level theft deterrent on top of physical lock
  • Re-Lock says IoT data will be made available via API
  • ART certification supports EU fleet insurance acceptance
  • Thales secure element provides hardware-level cryptographic security

Cons

  • -Remote-open API endpoint is not yet available as of Re-Lock email on 2026-05-11
  • -Current customer flow is BLE: backend fetches session keys, app generates OTPs, and phone talks to lock
  • -No confirmed server-side remote-lock command; users lock manually by holding the lever
  • -Public site remains light on detailed technical documentation
  • -Requires tighter OEM integration than simpler aftermarket locks

Ideal For

Integrated sharing fleets
Rental programs with NFC workflows
OEM connected-bike platforms

Compatible Fleet Platforms

Re-Lock API / IoT platform
Re-Lock Key Management Service
Compatible fleet management platforms

Specs taken from the official Re-Lock solutions page on 2026-04-23, Chiel Bekker email replies on 2026-05-11 and 2026-05-13, and RE-LOCK Technical Sheets 2026 PCB PDF / product demo video provided in May 2026. Re-Lock confirmed Premium and Premium Plus support server-side remote unlock at the hardware/platform level, but current customers use the BLE session-key flow: Re-Lock Key Management Service provides session keys and the app generates OTPs over BLE. The API endpoint to control/open a lock is not yet available and is expected soon; IoT data will be made available via API. NFC tap-to-unlock supports corporate badge fleets and ISO-14443 transit cards. Optional CAN bus integration with e-bike powertrain controllers enables drivetrain-level motor immobilisation. Re-Lock (Chiel Bekker) confirmed commercial terms on 2026-05-13: standard MOQ is 1,000 units (a 100-unit pilot is possible if stock allows); a special 2-sample pilot kit covering one BLE plus one Premium unit is available for โ‚ฌ100 with operator-supplied UPS/FedEx account. Lead time is 10 weeks per order (confirmed at quote time; quotes valid 30 days). Premium pricing includes a GSM SIM with 30 MB of data per month for 3 years; bring-your-own SIM has no specific network requirements. US import/certification specifics are still pending forwarder reply. Re-Lock will be unreachable 2026-05-14 through 2026-05-18 for the Dutch national holiday.

About This Product

Premium Plus is Re-Lock's top public smart-lock tier. The official solutions page keeps GPS, server-side operation, vehicle-battery power, and optional CAN bus integration while adding NFC to the access stack.

Re-Lock confirmed on 2026-05-11 that Premium and Premium Plus support server-side remote unlock at the hardware/platform level, but current customer deployments use the BLE session-key flow. The API endpoint to control/open a lock is not yet available and is expected to be added soon.

The 2026 technical sheets identify the shared Premium IoT electronics as a 73.0 x 32.0 mm board with LTE Cat 1 bis / EGPRS, nano SIM, onboard GNSS antenna, Nordic BLE, 8-55VDC external power, internal LiPo backup battery, motion sensing, buzzer, stepper motor driver, and up to 4,000 stored position logs.
