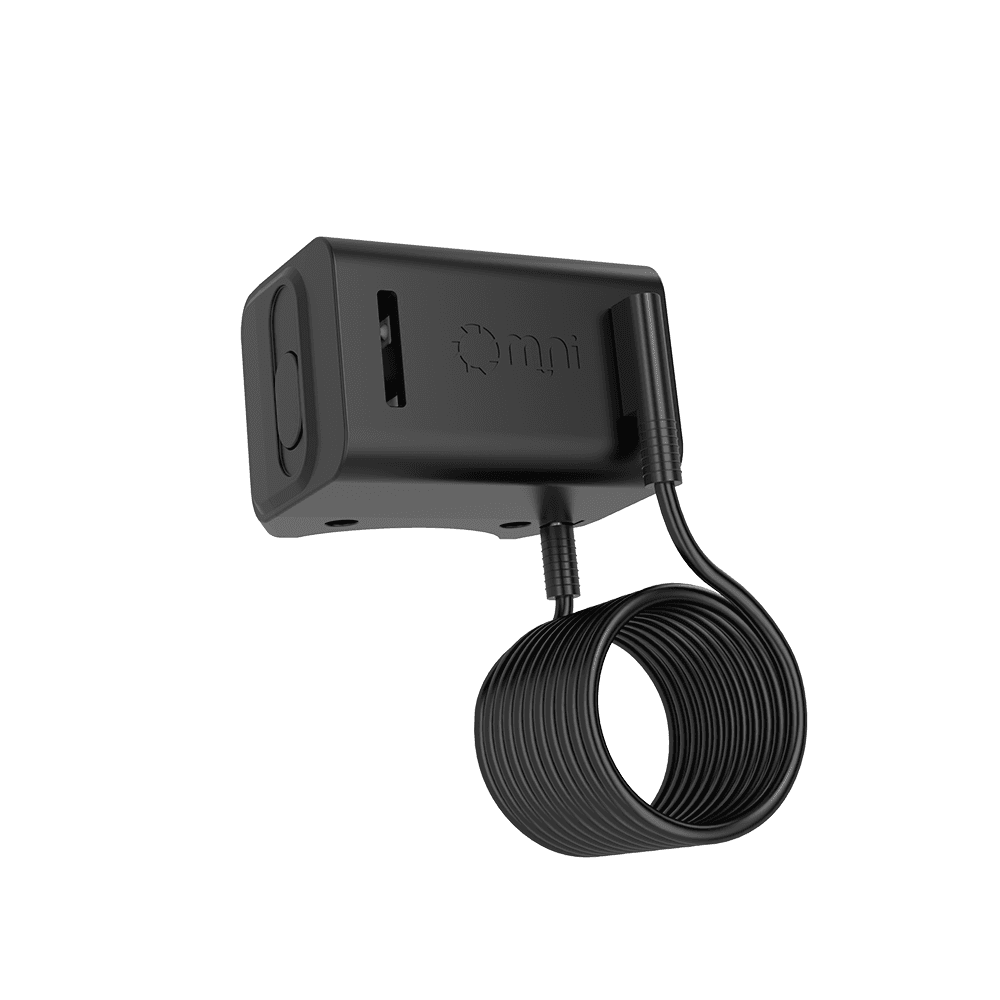

OMNI M230TKS smart helmet lock product image

1 / 8

🔒 Smart Lock

Fleet Recommended

OMNI

M230TKS 2-in-1 Smart Helmet Lock + Cable Lock

Name: M230TKS 2-in-1 Smart Helmet Lock + Cable Lock
Brand: OMNI
SKU: M230TKS

Official OMNI M230TKS two-in-one helmet lock and steel cable lock for shared micromobility, with IoT unlock, UART/CAN communication, and helmet-return identification.

Capability Categories

Lock Only

Cable Lock

Helmet Lock

Locking / Access Summary

Format

Helmet + steel cable

Model

M230TKS

Control

IoT / UART-CAN

Return Flow

Helmet ID check

Contact for Pricing Manufacturer Site

Technical Specifications

Official M230TKS Public Specs

Product Type

M230TKS helmet locks

Brand / Manufacturer

Omni

Lock Format

Steel cable lock + helmet lock

Communication

UART / CAN

Housing

Aluminum alloy

Unlock Mode

Auto unlock with compatible IoT device

Electrical & Environment

Input Voltage

DC24V-48V

Working Current

<=100mA at 36V

Operating Temperature

-20C to +60C

Waterproof Rating

IPX6 on public e-scooter page; confirm final SKU rating

Outer Dimensions

67 x 42 x 50 mm including bracket, from public OMNI e-scooter page

Fleet Workflow

Rider Access

App / QR authentication through fleet IoT system

Unlock Command

IoT/controller sends unlock command to lock

Monitoring

IoT system monitors helmet-lock status

Trip End

Helmet return can be required before normal vehicle return

Physical Specifications

IP Rating

IPX6

Features & Capabilities

Key Features

Official M230TKS smart helmet-lock product for shared urban mobility

Steel cable lock + helmet lock two-in-one design

Auto unlock when connected to a compatible IoT device

UART / CAN communication

Aluminum-alloy housing

Helmet return identification through IoT workflow

Designed for shared e-bike, e-scooter, and other micromobility fleets

Command-based unlock via IoT/controller communication line

Pros

Combines helmet retention and cable security in one part
Ties helmet return into trip-end workflow instead of relying only on rider behavior
UART/CAN support makes it better suited to fleet-controller integration than consumer helmet locks
Official imagery shows both e-bike and scooter mounting contexts

Cons

-Public M230TKS page does not provide a full downloadable datasheet
-Public sources support IPX6, DC24V-48V, and <=100mA at 36V; older inherited specs should be confirmed before procurement
-Bluetooth/app-control claims are better supported for M209TKS than for the public M230TKS page
-Steel cable should be treated as fleet accessory security, not a high-security overnight vehicle lock

Ideal For

Shared e-bike fleets with helmet-return requirements

Shared scooter and moped fleets in helmet-mandate markets

Operators that want helmet return tied to trip completion

Fleets with UART/CAN-capable IoT controllers

Compatible Fleet Platforms

OMNI IoT platform

Specs from OMNI M230TKS public e-bike page plus related OMNI two-in-one e-scooter helmet-lock page. Some older catalog/inherited specs conflict with public M230TKS pages and should be confirmed before purchase.

About This Product

OMNI positions M230TKS as a smart helmet lock for shared urban mobility fleets. The public product page identifies it as an M230TKS helmet-lock product and highlights automatic unlocking through a compatible IoT device, UART/CAN communication, aluminum-alloy housing, and a combined steel cable plus helmet-lock format.

The strongest fleet use case is helmet-return enforcement. OMNI describes a return workflow where the rider manually returns and locks the helmet, the IoT device identifies the helmet return, and the shared vehicle can then be returned successfully.

OMNI also markets the same two-in-one steel cable plus helmet-lock concept for shared e-scooters. Treat app/QR authentication, controller unlock commands, lock-status monitoring, and relocking after use as category-backed workflow notes unless OMNI confirms the exact integration scope for a procurement SKU.
