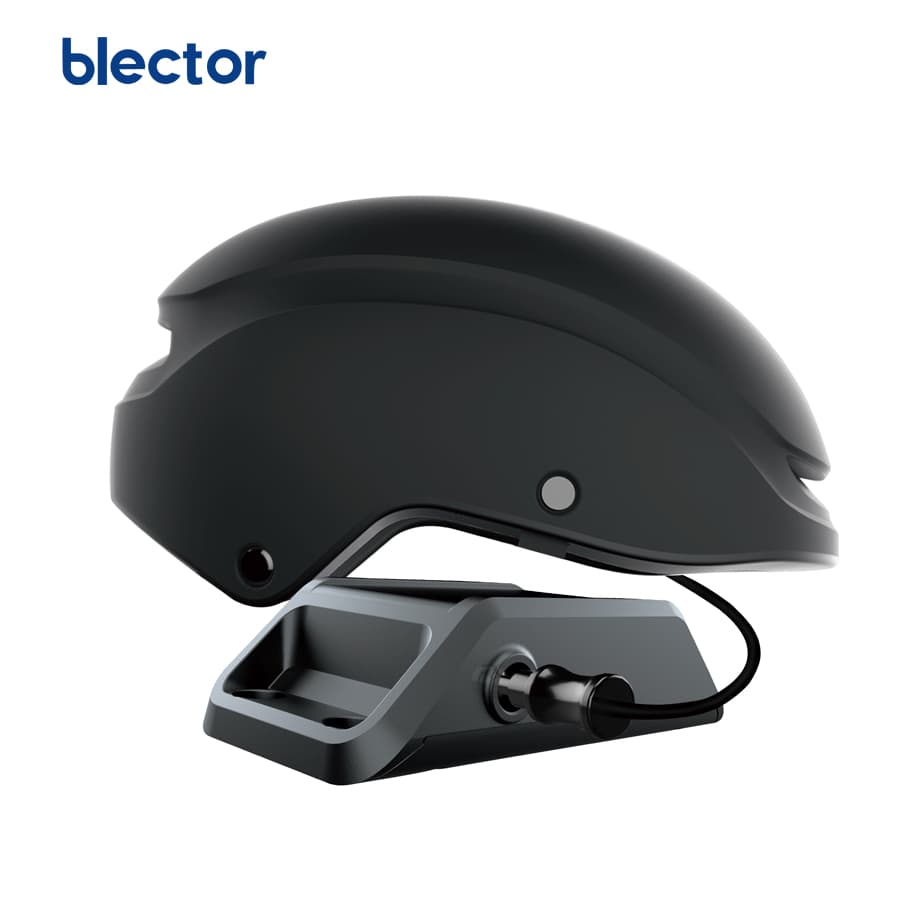

BLECTOR ST-505 electronic helmet lock product image

1 / 6

🔒 Smart Lock

Fleet Recommended

BLECTOR

ST-505 Helmet Lock

Name: ST-505 Helmet Lock
Brand: BLECTOR
SKU: ST-505

48V electronic helmet lock for shared scooters, bikes, and mopeds with app/electronic-signal control, lock-status feedback, and IP67 protection.

Capability Categories

Lock Only

Helmet Lock

Locking / Access Summary

Voltage

48V

Control

App / signal

Feedback

Position switch

Protection

IP67

Contact for Pricing Manufacturer Site

Technical Specifications

Electrical & Control

Model

ST505 / ST-505

Voltage

48V

Standby / Quiescent Current

<=7mA

Working / Dynamic Current

<=70mA

Motor Type

DC motor

Drive Time

Lock 2s; open 2s

Control

App, computer, or electronic signal

Signal Feedback

Yes; position-detection switch

Mechanical & Environment

Lock Size

Approx. 136 x 69 x 37 mm

Body Material

Zinc alloy

Installation

Bolt-fixed

Working Temperature

-20C to +70C

Storage Temperature

-30C to +85C

Waterproof Rating

IP67

Emergency Release

Manual unlock when power is off

Sharing Workflow

Rider Flow

Scan QR code; lock opens when vehicle is active

Helmet Return

Insert rope into lock

Anti-Cheat Claim

Matched lockpin required to lock helmet

Target Vehicles

Electric scooters, e-bikes, mopeds, motorcycles

Physical Specifications

IP Rating

IP67

Connectivity

Companion App

App, computer, or electronic-signal control

Features & Capabilities

Key Features

48V DC-motor electronic helmet lock

QR-code ride-start release flow for sharing fleets

Helmet return by inserting rope into the lock

App, computer, or electronic-signal remote control

Position-detection switch for lock-status feedback

Manual unlock support when power is off

Bolt-fixed installation

Zinc alloy body with spray-coated outdoor finish

IP67 waterproof rating

Approx. 136 x 69 x 37 mm lock body

-20C to +70C operating range

Pros

Core specs are corroborated by BLECTOR product page and catalog PDF
Good electrical fit for 48V shared scooter, e-bike, and moped platforms
Lock-status feedback supports app-visible helmet-return workflows
Manual unlock reduces field-service risk during power loss
Helmet-lock workflows are proven in shared micromobility operations

Cons

-No public pinout, protocol, connector, SDK, cycle-life, pull-strength, or certification data
-Public English page has spelling/translation issues; verify final datasheet before procurement
-Not documented as Bluetooth/LTE standalone hardware; likely requires host vehicle controller
-48V design may need conversion or redesign for 5V/12V platforms
-No published sanitization, helmet-worn detection, or basket/storage feature for ST-505

Ideal For

48V shared scooter fleets

Shared e-bike and moped fleets that provide helmets

Helmet-return enforcement workflows

Operators with an existing IoT/control board that can send unlock signals

Markets where helmet access is a rider-adoption or compliance issue

Compatible Fleet Platforms

BLECTOR electronic lock signal

Operator scooter control board

Specs from BLECTOR ST-505 official product page. Product page spelling is kept out of catalog labels, but source URL uses "hemlet".

About This Product

BLECTOR ST-505 is a compact 48V electronic helmet lock for shared scooters, e-bikes, and mopeds. BLECTOR describes a QR-code rental flow where the lock opens when the vehicle becomes active, and the helmet is secured again by inserting the rope into the lock.

For fleet operators, the useful differentiators are lock-status feedback, app/computer/electronic-signal control, bolt mounting, zinc-alloy construction, IP67 protection, and manual unlock support when power is off. Treat it as a host-controlled helmet-retention actuator rather than a standalone connected lock unless BLECTOR provides a protocol or pinout datasheet.
