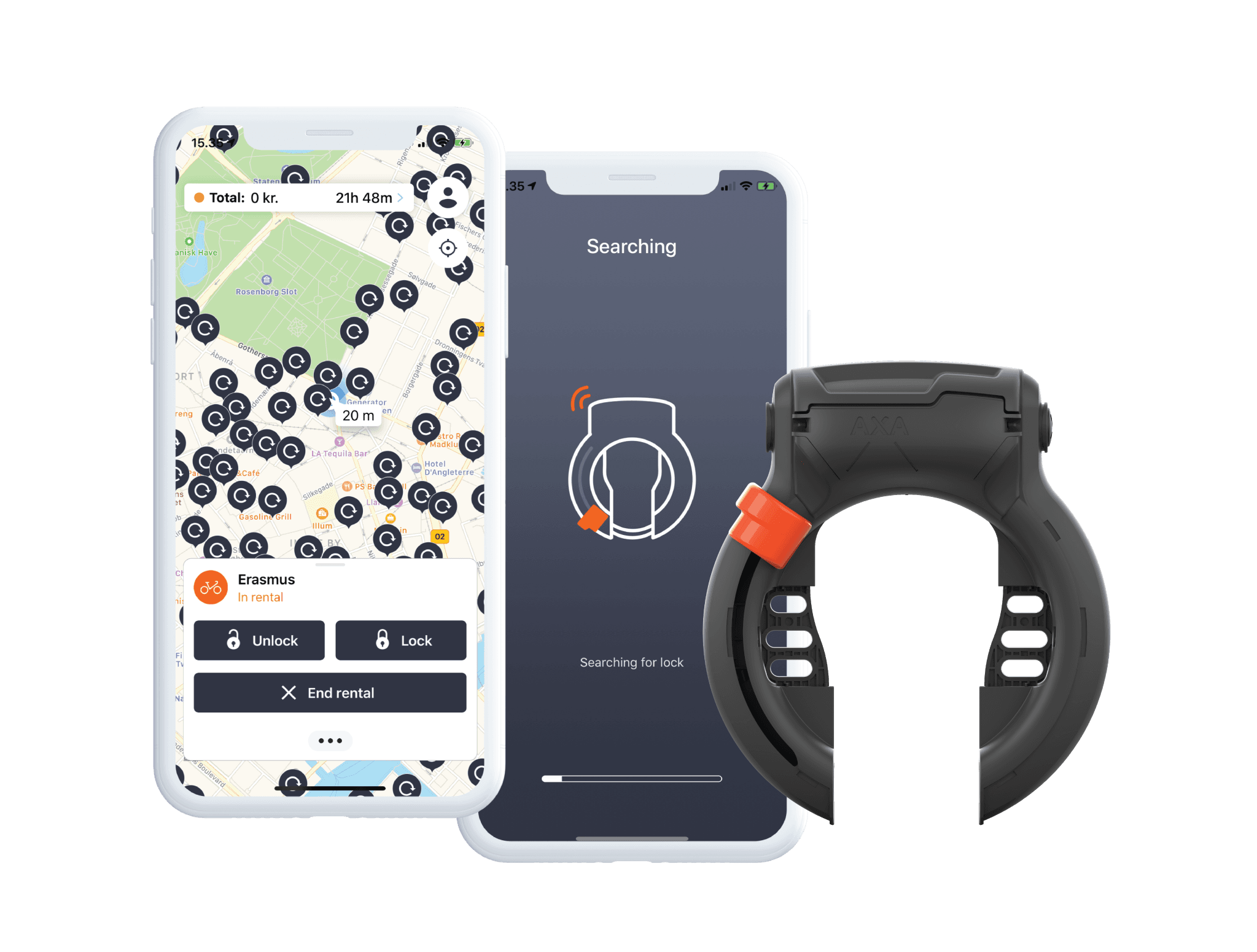

AXA-IN E-RL Wired electronic ring lock from AXA smart-solutions materials

🔒 Smart Lock

Fleet Recommended

AXA Bike Security

AXA-IN E-RL Wired

Name: AXA-IN E-RL Wired
Brand: AXA Bike Security
SKU: AXA-IN

OEM electronic ring lock for shared bikes with wired I/O control by an operator-supplied IoT module, plus plug-in chain or cable support.

Control

Wired I/O

Host

Third-party IoT

Accessory

Plug-in chain / cable

Target

Bike sharing / rental

Contact for Pricing Manufacturer Site

Technical Specifications

Connectivity

Companion App

Operator-supplied IoT module / fleet backend

Integration

Communication

Wired I/O signals via a 5-wire cable to the host IoT module

Unlock Workflow

Remote lock/unlock depends on the operator-supplied IoT module and backend

AXA IoT Module

Not available per AXA follow-up on 2026-05-07

Deployment Notes

Target Use

Customized for bike sharing and rental

Accessory Support

Connects to a plug-in chain or cable

Cable Integration

AXA recommends proper protected routing to reduce vandalism risk

Public Spec Gaps

Battery, dimensions, and IP rating are not published on the OEM page

Power & Operation

Power Source

Operation Mode

Online only through the host module; the lock has no built-in cellular radio

Plug-In Chain Detection

Detects when an Absolute Plug-In chain is inserted (matches the BLE variant)

Form Factor

Standard AXA Defender RL retrofit — same chassis as the BLE variant

In the Box

Lock body, wiring harness, mounting hardware, and mechanical service key

Unlock Methods

RFID

Card or chip unlock through the host system — supports closed-loop or membership fleets where users may not have phones

Smartphone

Smartphone unlock via the operator backend (not direct BLE)

Mechanical

Service key for override during maintenance

Certifications & Pedigree

Mechanical Pedigree

Inherits AXA Defender RL chassis — Sold Secure Silver baseline before electronics

Parent Company

Allegion (also parent of Schlage and von Duprin)

Ideal Use Cases

Fleets With Existing IoT

E-bike rental fleets where bikes already have a cellular gateway or IoT module

Closed-Loop Programs

Corporate or campus fleets using RFID badges

Hospitality

Hotel and resort bike share with RFID room-key integration

OEM Integration

Bikes where lock state needs to feed into the existing CAN bus or display

Features & Capabilities

Key Features

Wired I/O control

5-wire connection to host IoT module

Plug-in chain or cable support

Customized for bike sharing and rental

No AXA monthly lock-connectivity fee when controlled by host module

Pros

Designed for deeper OEM electrical integration
Preserves smartphone access for riders
Supports fixed-object locking via plug-in accessories

Cons

-Requires an external IoT module; AXA no longer supplies its own IoT module
-Requires proper cable integration and vandalism-resistant routing
-Public OEM page does not publish full electrical or fitment details
-Sold as an integration product rather than a standard public retail SKU

Ideal For

OEM shared-bike builds

Rental fleets

Integrated connected-bike platforms

Compatible Fleet Platforms

External third-party IoT module with I/O ports

Operator fleet backend

Specs captured from the official AXA / Allegion E-Rental smart-solutions page on 2026-04-23 and updated after vendor clarification. AXA confirmed on 2026-05-07 that AXA IoT modules are no longer available; remote lock control requires an external third-party IoT module or wired host controller. The wired variant can support remote lock/unlock when the operator supplies the IoT module and protected wiring. Sold B2B-only; pricing is quote-based via Allegion sales.

About This Product

AXA lists the AXA-IN E-RL Wired alongside the Bluetooth variant on its E-Rental smart-solutions page. The official description identifies it as an electronic ring lock with wired communication for bike-sharing deployments.

In a 2026-05-07 follow-up, AXA described the wired ERL 2.0 as the maximum-flexibility option: an external IoT module controls the lock through I/O signals over a 5-wire cable. The IoT module provides the cellular/backend layer; the AXA lock itself is the wired actuator.

AXA also clarified that its own IoT modules are no longer available. This means remote lock and unlock are possible only when the operator supplies and integrates the host IoT module and cabling.
